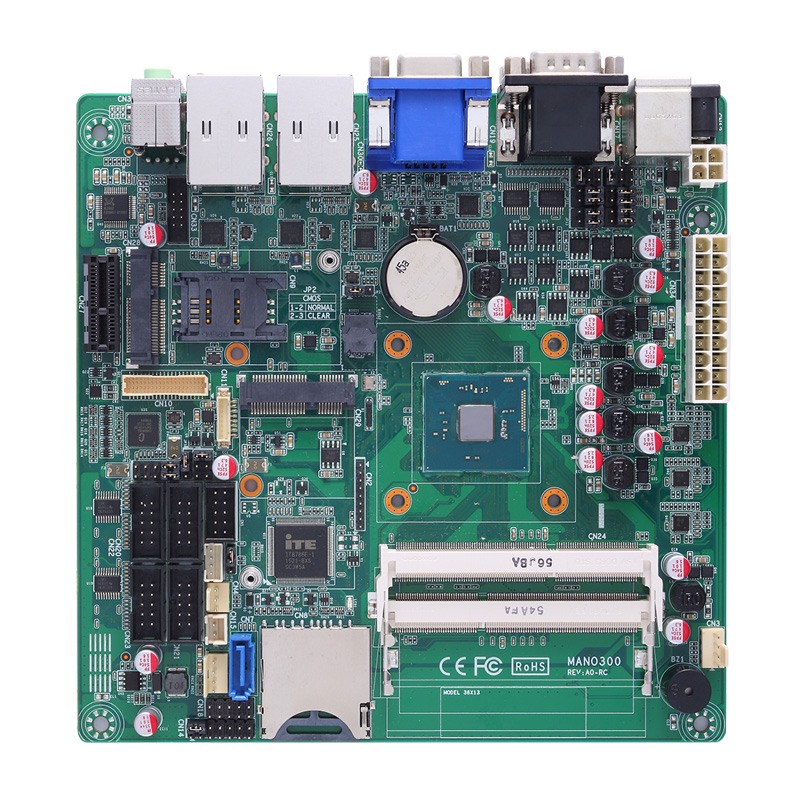

MANO300

Mini-ITX SBC with Intel® Celeron® Processor N3160 (up to 2.24 GHz) SoC, VGA/HDMI/LVDS, USB 3.0, Mini PCIe Card, mSATA and HD Audio

状態:Available
関連ニュース
データシート (PDF)
比較する製品を追加
お問い合せ
MANO300 MANO300
  • 特徴
  • 仕様書
  • 注文情報
  • ダウンロード
  • 関連製品

特徴

  • Intel® Celeron® processor N3160 2.24 GHz (Braswell)
  • 2 DDR3L-1600 SO-DIMM, up to 8GB
  • PCI Express Mini Card and PCIe x1 slot
  • 4 USB 3.0 and 2 USB 2.0 ports
  • 1 SATA-600, 1 mSATA and 1 SDXC
  • 6 COM ports
  • 12 VDC and STD ATX
  • VGA,HDMI and LVDS with triple-view supported

概要

The MANO300 mini-ITX motherboard built with the latest Intel® Celeron® processor N3150 (codename: Braswell) with integrated Intel® Gen 8 graphics supporting up to 4K resolution. Two SO-DIMM sockets are provided to support up to 8GB of DDR3L-1600 memory. The 12V single voltage DC power jack or ATX power makes the power input selection more flexible for different automation and embedded industries. Its friendly fanless cooling system design and compact form factor aimed at space-limited applications as well as harsh environments.

CPU
  • Intel® Celeron® processor N3160 up to 2.24 GHz
Chipset
  • SoC integrated
System Memory
  • 2 x 204-pin SO-DIMM dual channel DDR3L-1600, up 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 4 x RS-232 (one with +5/+12V)
USB
  • 2 x USB 2.0 (Internal)
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display
  • 1 x VGA
  • 1 x HDMI
  • 1 x LVDS
Digital I/O
  • 8 channels programmable
Audio
  • Mic-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x mSATA
Expansion
  • 1 x PCIe x1
  • 1 x PCI Express Mini Card
  • 1 x SIM card slot
Others
  • 1 x PS/2 keyboard & mouse
Battery
  • Lithium 3 V/ 220 mAH
Power Requirements
  • 12VDC or STD ATX
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Hardware Monitoring
  • N/A
Operating Temperature
  • 0°C ~ +60°C (+32°F ~ +140°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
  • MANO300VHGGA (P/N-E38M300101)
  • Mini-ITX SBC with Intel® Celeron® N3160, VGA/HDMI/ LVDS, 2 GbE LANs, 6 COM, USB 3.0, mSATA, PCI Express Mini Card and HD audio
  • 59411500600E
  • SATA power cable 4P 180 mm (RC)
  • 59386831000E
  • USB x 2, 2 x 5P 2.54 mm, L=180 mm
  • 59380703000E
  • COM port x 2 with bracket P=2.54 mm
  • 50956124010E
  • AC Adapter 60W/12V5A/Φ2.5

Drivers

Date Description Version Download File
2017/10/11 Win10_Driver_64bit V1.1 406,710.9KB
2017/10/11 Win10_Driver_32bit V1.1 291,088.6KB
2017/10/11 Win8.1_Driver_64bit V1.1 467,150.7KB
2017/10/11 Win8.1_Driver_32bit V1.1 391,664.6KB
2017/10/11 Win7_Driver_64bit V1.1 470,107.8KB
2017/10/11 Win7_Driver_32bit V1.1 397,129.8KB
2017/07/10 IEGD_15.1_LVDS only for Win XP VA1.0 2,909.5KB

Software

Manual

Date Description Version Download File
2017/10/11 User's Manual V2.0 3,352.2KB

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2017/08/10 CE-Conformity Declaration 50.1KB

Please read our Software License Information

MANO300 MANO300
  • 特徴
  • Features

    • Intel® Celeron® processor N3160 2.24 GHz (Braswell)
    • 2 DDR3L-1600 SO-DIMM, up to 8GB
    • PCI Express Mini Card and PCIe x1 slot
    • 4 USB 3.0 and 2 USB 2.0 ports
    • 1 SATA-600, 1 mSATA and 1 SDXC
    • 6 COM ports
    • 12 VDC and STD ATX
    • VGA,HDMI and LVDS with triple-view supported

    概要

    The MANO300 mini-ITX motherboard built with the latest Intel® Celeron® processor N3150 (codename: Braswell) with integrated Intel® Gen 8 graphics supporting up to 4K resolution. Two SO-DIMM sockets are provided to support up to 8GB of DDR3L-1600 memory. The 12V single voltage DC power jack or ATX power makes the power input selection more flexible for different automation and embedded industries. Its friendly fanless cooling system design and compact form factor aimed at space-limited applications as well as harsh environments.

  • 仕様書
  • CPU
    • Intel® Celeron® processor N3160 up to 2.24 GHz
    Chipset
    • SoC integrated
    System Memory
    • 2 x 204-pin SO-DIMM dual channel DDR3L-1600, up 8 GB
    BIOS
    • AMI
    COM
    • 2 x RS-232/422/485
    • 4 x RS-232 (one with +5/+12V)
    USB
    • 2 x USB 2.0 (Internal)
    • 4 x USB 3.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Realtek RTL8111F)
    Display
    • 1 x VGA
    • 1 x HDMI
    • 1 x LVDS
    Digital I/O
    • 8 channels programmable
    Audio
    • Mic-in/Line-out
    Storage
    • 1 x SATA-600
    • 1 x mSATA
    Expansion
    • 1 x PCIe x1
    • 1 x PCI Express Mini Card
    • 1 x SIM card slot
    Others
    • 1 x PS/2 keyboard & mouse
    Battery
    • Lithium 3 V/ 220 mAH
    Power Requirements
    • 12VDC or STD ATX
    Watchdog Timer
    • 255 levels, 1 ~ 255 sec.
    Hardware Monitoring
    • N/A
    Operating Temperature
    • 0°C ~ +60°C (+32°F ~ +140°F)
    Relative Humidity
    • 10% ~ 95% relative humidity, non-condensing
    Dimensions
    • 170 x 170 mm
    Board Thickness
    • 1.6 mm
    Certifications
    • CE
  • 注文情報
    • MANO300VHGGA (P/N-E38M300101)
    • Mini-ITX SBC with Intel® Celeron® N3160, VGA/HDMI/ LVDS, 2 GbE LANs, 6 COM, USB 3.0, mSATA, PCI Express Mini Card and HD audio
    • 59411500600E
    • SATA power cable 4P 180 mm (RC)
    • 59386831000E
    • USB x 2, 2 x 5P 2.54 mm, L=180 mm
    • 59380703000E
    • COM port x 2 with bracket P=2.54 mm
    • 50956124010E
    • AC Adapter 60W/12V5A/Φ2.5
  • ダウンロード
  • Drivers

    Date Description Version Download File
    2017/10/11 Win10_Driver_64bit V1.1 406,710.9KB
    2017/10/11 Win10_Driver_32bit V1.1 291,088.6KB
    2017/10/11 Win8.1_Driver_64bit V1.1 467,150.7KB
    2017/10/11 Win8.1_Driver_32bit V1.1 391,664.6KB
    2017/10/11 Win7_Driver_64bit V1.1 470,107.8KB
    2017/10/11 Win7_Driver_32bit V1.1 397,129.8KB
    2017/07/10 IEGD_15.1_LVDS only for Win XP VA1.0 2,909.5KB

    Software

    Manual

    Date Description Version Download File
    2017/10/11 User's Manual V2.0 3,352.2KB

    Design Guide

    Technical Announcement

    Certificates

    Date Description Version Download File
    2017/08/10 CE-Conformity Declaration 50.1KB

    Please read our Software License Information

  • 関連製品

最新ニュース

Axiomtekは、最適化された接続性および高性能を備えた第8世代Intel® Core™搭載産業用ATXマザーボード - IMB523をリリース

ビデオ

Driving Innovation in Retail

ソリューション

Kaby Lake Ready Embedded Solutions

製品

  • 組み込みPCボード
  • システムとプラットフォーム
  • パネルコンピュータ
  • IoT ソリューション

ソリューション

  • 産業オートメーション
  • 交通
  • メディカル
  • 小売業向けソリューション
  • 電力およびユーティリティ
  • IoTとM2M
  • ネットワークセキュリティ
  • ゲーム機器対応ソリューション

最新情報

  • 新製品一覧
  • ニュース
  • ニュースレター
  • イベント予定表
  • RSS 配信

リソース

  • ホワイトペーパー
  • 情報技術
  • 電子カタログ
  • 製品ビデオ

サポート

  • ダウンロード
  • データシート (PDF)
  • サポート依頼
  • よくあるご質問(FAQ)
  • eRMA サービス
  • パートナーゾーン

会社概要

  • 企業紹介
  • 製品
  • サービス & サポート
  • 世界中の拠点

お問い合わせ

  • 見積依頼
  • カタログ請求
  • パートナーゾーン
  • ご連絡
FacebookTwitterLinkinGoogle+YoutubeInstagram
通信購読登録
フィードバック
サイトマップ
プライバシ
商標
Cookies
© 2019 アクショムテック (Axiomtek)

Axiomtek Websites use cookies to improve and personalize your experience. The Websites may also include cookies from third parties. By using this site, you consent to the use of cookies. Learn more.

Agree
