| Height |
|
| Expansion |
|
| Drive Bay |
- Exposed:
- 1 x slim-line CD-ROM
- 1 x 3.5" HDD drive bay
- 1 x 5.25" HDD drive bay
- Internal:
- 1 x 3.5" HDD drive bay
|
| Cooling System |
- 2 x 8 cm ball-bearing fans (42.5 CFM/each) with a removable filter
|
| System Board |
- PICMG 1.0 & PICMG 1.3 SBCs
|
| Backplane Options |

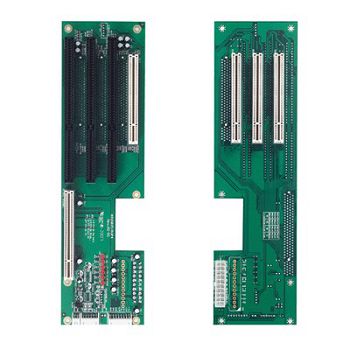

- ATX6022/6VP4

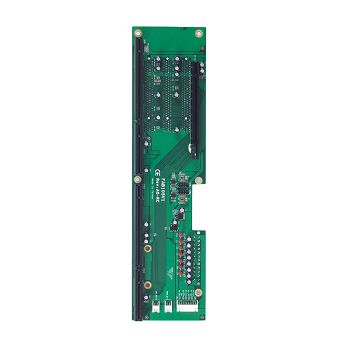

- FAB105-V1

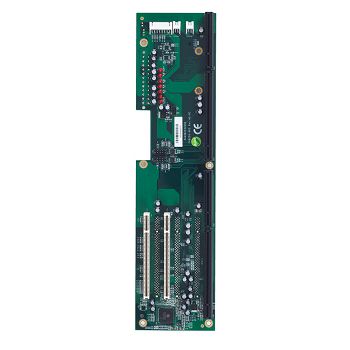

- FAB205
- FAB210
|
| I/O Interface |
|
| Front Panel Indicators |
|
| Front Panel Controls |
- 1 x Power on/off
- 1 x System reset
|
| Power |
- PS/2 type (optional HRP for AX61220TP)
|
| Operating Temperature |
- 0°C to +40°C (+32°F to +104°F)
|
Dimensions
(W x D x H) |

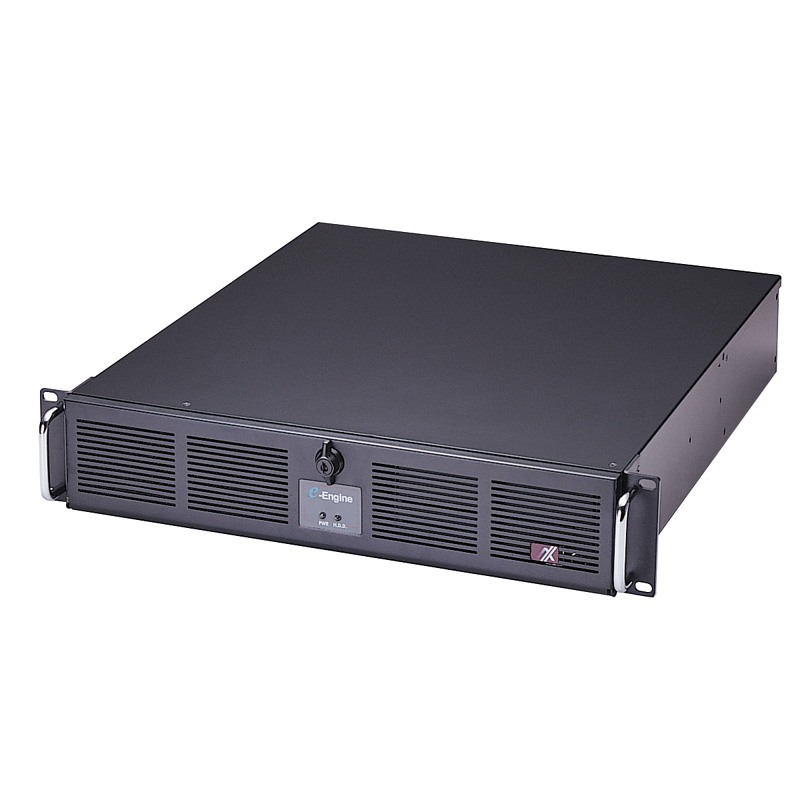

- AX61222TB: 481.4 x 450 x 88.9 mm (18.95" x 17.7" x 3.5")
- AX61220TB: 481.4 x 475 x 88.9 mm (18.95" x 18.7" x 3.5")
|
| Weight (net/gross) |
- 8.22 kg (18.12 lbs)/10.26 kg (22.62 lbs) (AX61222TB)
- 8.6 kg (18.96 lbs)/12.02 kg (26.49 lbs) (AX61220TB)
|
| Certifications |
|
